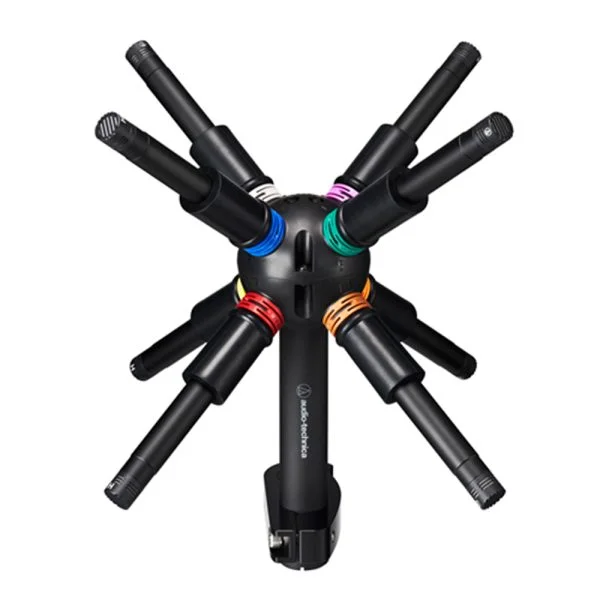

The BP3600 is an immersive audio microphone capable of capturing stable, three-dimensional sound beds at sporting events, movie sets, concerts, festivals, and more.
The microphone has eight compact capsule assemblies with excellent high-frequency characteristics integrated into the body while remaining compact enough for single-operator usability and easy setup.
Direct routing is also possible, with no need for additional decoding or latency processing with 5.1.4-channel speaker layouts.
This practical, state-of-the-art broadcasting solution captures a realistic sound that will bring an immersive experience to listeners without the need for extensive equipment.
BP3600 Features:
- Stable, three-dimensional audio at sporting events, movie sets, concerts, festivals, and more
- Quick microphone assembly connection and disconnection for easy setup and dismantling
- Controlled separation to capture realistic environmental sounds
- Direct routing to 5.1.4-channel speaker layouts eliminates the need for additional decoding or delay processing during routing.
- Instant number- and color-based channel identification
- Microphone connector locks for quick, secure connection and disconnection
- Safety strap for drop-prevention wires when suspended
- Connectable grip-end cable with multi-pin output connector for easy portability
- Easy installation of included cables or extension cables (sold separately)
- Requires 48 VDC phantom power per channel

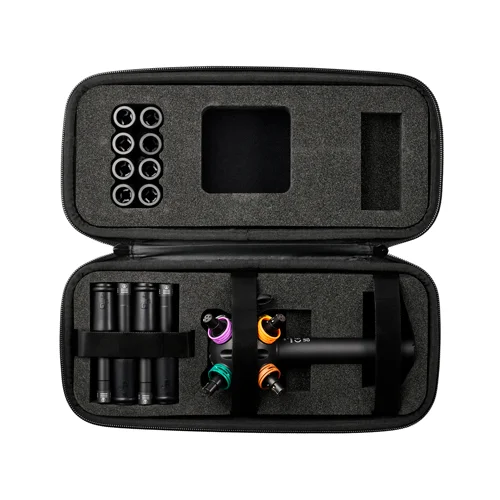

- Includes 8 sets AT8172 windscreens, AT8476 stand clamp, Threaded adapter, BP3600/CABLE cable and Case
- Optional accessories – BP3600/WS windshield, BP3600/WJ windjammer, BP3600/CABLE20EXT 20m extension cable

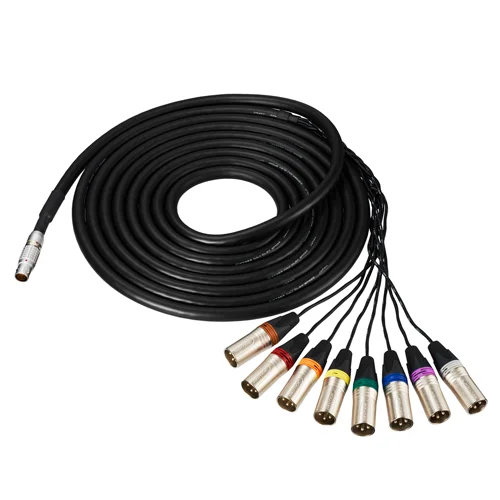

BP3600 Cable Specifications
Cable Outer Diameter
|
11.5 mm
|
Input Connections
|
16-pin LEMO 2B series connector (male)
|
Output Connector
|
XLR-M type×8
|
Dimensions
|
5 m length
|
Weight
|
1.2 kg
|
