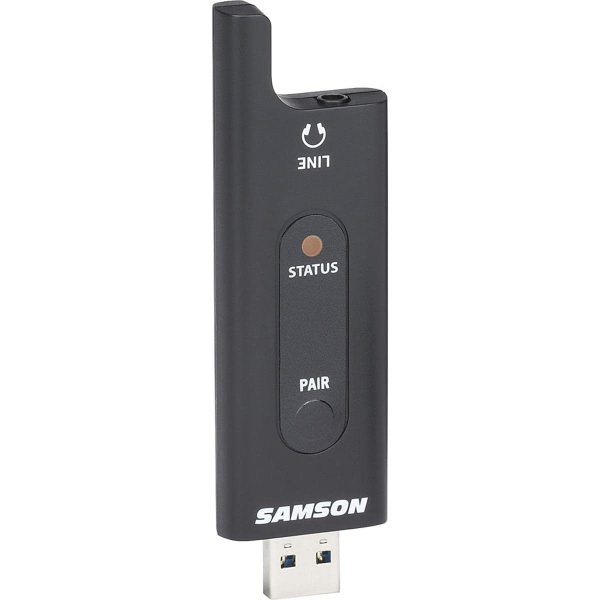

The Stage Series RXD2 Wireless USB Receiver from Samson brings the convenience of a 2.4 GHz receiver to your digital communications. It can be used when paired with a microphone and a beltpack transmitter (sold separately) to capture audio straight to your Mac or Windows computer using your favorite digital audio software, which is ideal for capturing dynamic performances at gigs, and more.
The USB receiver provides over 100′ of wireless range (environment-dependent) and is built with 1-touch pairing, an LED status indicator that displays the operation mode, and a line/headphone output to connect to an analog line input or headphones for monitoring. Furthermore, the receiver is ideal for broadcasting, live streaming, presentations, and more. It is also compatible with Samson Expedition Series portable PAs.
~ GENERAL SPECS ~
—
Wireless Technology
Digital UHF (2.4 GHz)
Number of RF Channel Frequencies
1
Max Operating Range
100' / 30.5 m (Line of Sight)
Max Transmitters per Band
2
Modulation
GFSK
~ RECEIVER SPECS ~
—
Receiver Type
USB Stick
Antenna
1 x 1/4 Wave Internal
Number of Audio Channels
1
Audio I/O
1 x 1/8" / 3.5 mm TS Female Unbalanced Headphone Output
Audio Output Level
1/8" / 3.5 mm Output:
9 dBu
Frequency Response
20 Hz to 17 kHz
USB/Lightning Connectivity
1 x USB-A (Bus Power, Charging, Host Connection)
Power Requirements
Bus Power (USB)
Display & Indicators
1 x LED (Data Transmission, Host Connection, Power)
Housing
ABS
Operating Temperature
14 to 104°F / -10 to 40°C
Dimensions
3.5 x 0.9 x 0.3" / 89 x 23 x 8 mm
Weight
0.4 oz / 10 g
~ PACKAGING INFO ~
—
Package Weight
0.04 lb
Box Dimensions (LxWxH)
4.6 x 3.4 x 0.7"
