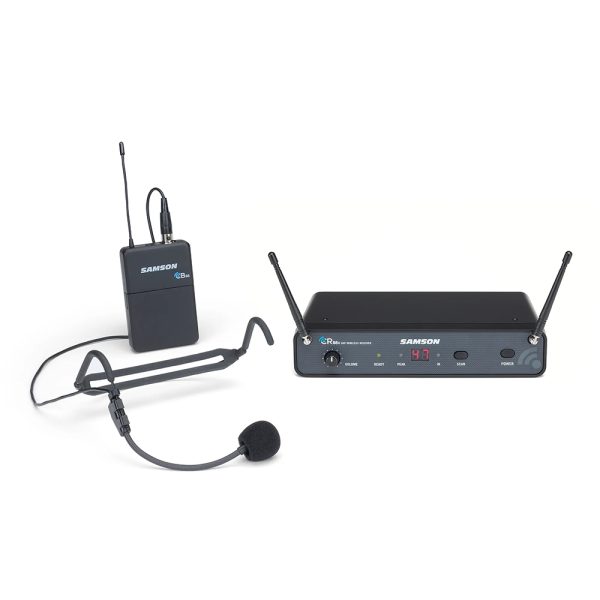

The Concert 88x Headset System is perfect for anyone who needs to move freely during a performance or presentation. Whether you’re a singer, worship leader, educator, fitness instructor or just someone who needs to move around during a presentation, this wireless system gives you the freedom you need. Plus, it’s super easy to use and reliable, so you can focus on what you’re doing, not your equipment.
Pro Performance. Simple Setup.
Simplicity and performance are at the heart of the Concert 88x wireless systems. One-touch scanning analyzes all available channels and selects the clearest channel for your performance space. An infrared signal then locks the transmitter and receiver together on the selected channel. With 100 frequencies and a wide 25 MHz bandwidth, there are plenty of channels available for your event/application.
Sound Secure

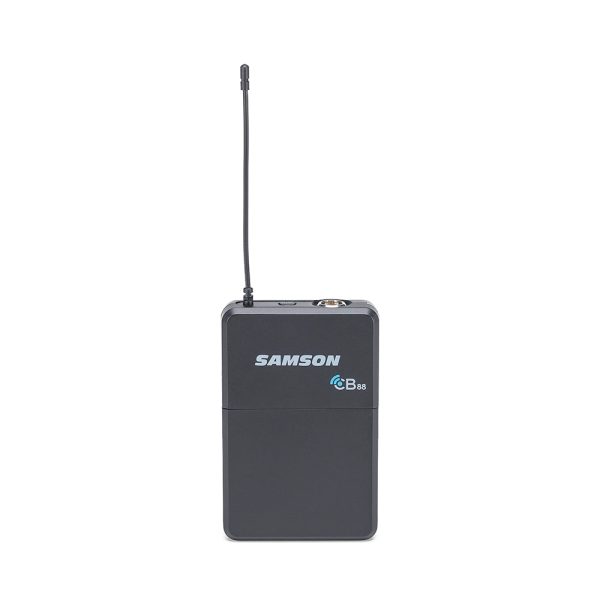

The CB88 Beltpack Transmitter features a silent mute switch that eliminates popping noises when muting or unmuting the system, and an adjustable gain control for optimal performance. The CB88 fits securely on the performer’s belt, waistband, or even in a pocket and provides up to eight hours of continuous operation from a pair of AA batteries.
Freedom to Roam the Stage
True-diversity design minimizes dropouts for loud, clear wireless reception up to 300 feet. Tone key and auto-mute circuitry ensures that only the audio signal from the CB88 beltpack transmitter reaches the receiver, and automatically mutes the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.
Making Connections

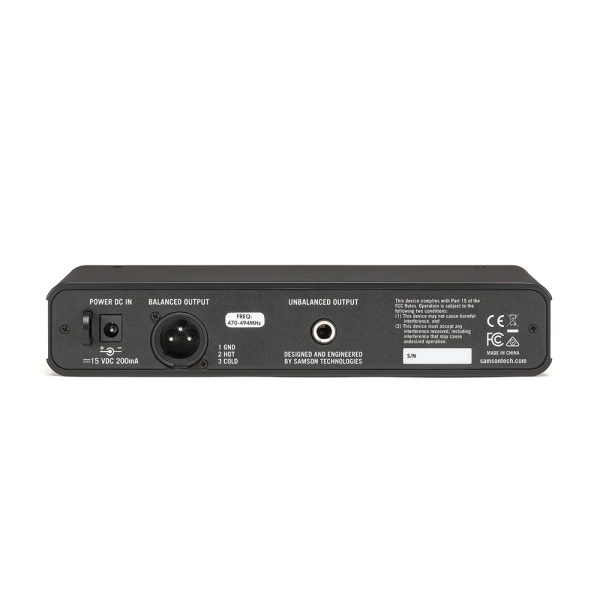

The rear panel provides both balanced (XLR) and unbalanced (1/4″) connections to an amplifier, sound system, or recording console. The half-rack format and included rackmount kit allow single or multiple CR88x receivers to be installed in a portable audio rack or fixed location.
Headset Microphone
The Samson HS5 is a unidirectional microphone that provides a focused pickup pattern and includes an adjustable and form-fitting headband that keeps the mic securely in position – perfect for the active instructor or performer.
Features – Concert 88x Headset System:
High-performance professional UHF wireless system
100 operating channels across 25 MHz bandwidth
Up to 8 systems can be used simultaneously per frequency band (region dependent)
300′ operating range (line-of-site)

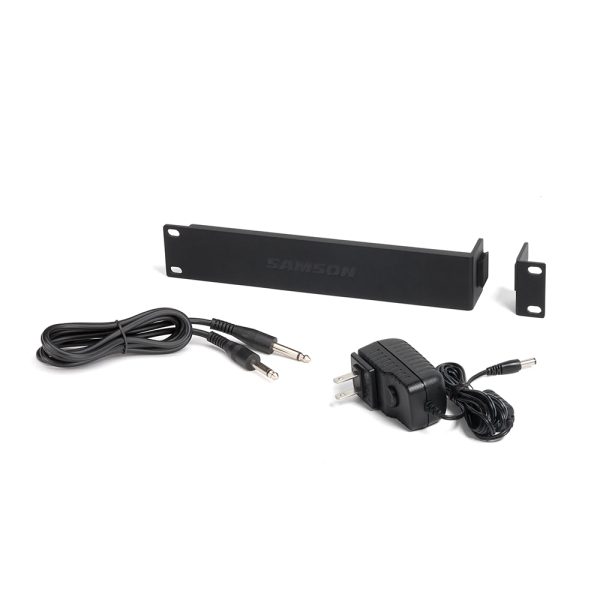

Rackmount kit included
Features – CB88 Beltpack Transmitter:
Adjustable input gain
Silent mute button
Power/Mute status indicator
Metal belt clip
Up to eight hours of continuous use from two AA batteries

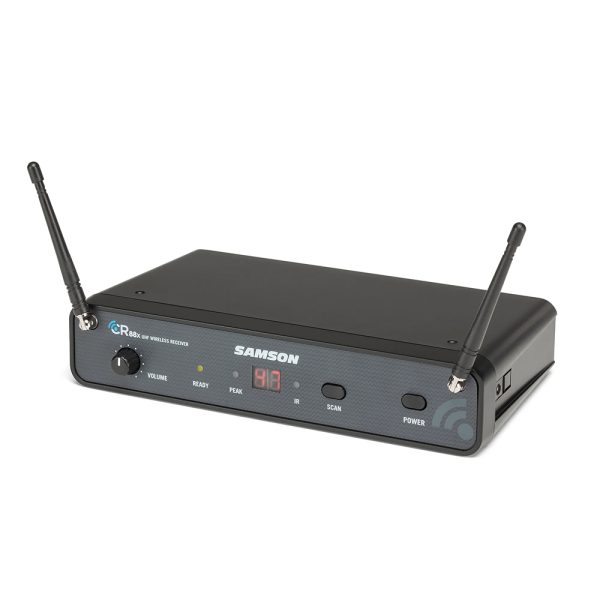

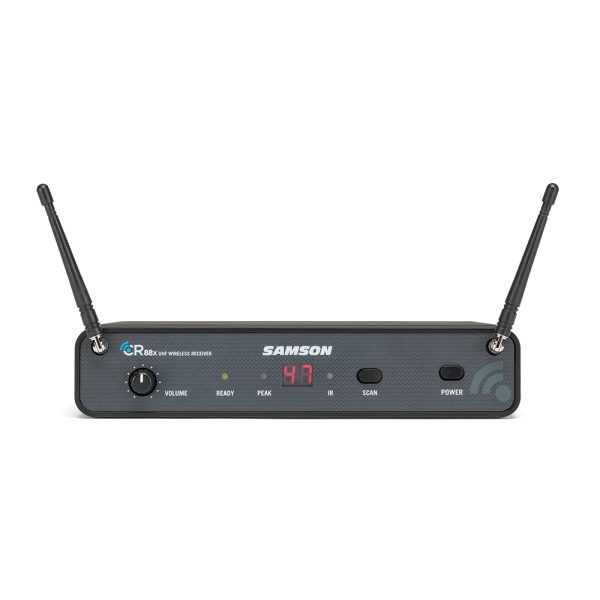

Features – CR88x Wireless Receiver:
One-touch automatic frequency scan finds the best operating channel
Two digit LED display
Infrared link locks the receiver and transmitter to the same channel
True diversity design minimizes dropouts
Tone key and auto mute prevents unwanted noise when transmitter is off or out of range
Balanced XLR and unbalanced 1/4″ outputs
~ SYSTEM SPECS ~
—
System Working Range
300' (100m) line of sight
Audio Frequency Response
50 Hz – 15 kHz
T.H.D. (Overall)
<1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range
>100 dB A-weighted
Signal to Noise
>90 dB Tone
Key Frequency
35 kHz
~ CB88 BELTPACK TRANSMITTER ~
—
Input Connector
Mini-XLR (P3)
Input Impedance
1M Ω
Input Gain Range
38 dB
RF Power
10 mW EIRP
Power Requirements
Two AA (LR6) alkaline batteries
Battery Life
8 hours
Dimensions (HxLxD)
3.75" x 2.44" x 0.75" / 96mm x 62mm x 18.5mm
Transmitter Weight
0.2 lb / 93 g
~ CR88X RECEIVER SPECS ~
—
Audio Output Level - Unbalanced
+14 dBu
Audio Output Level - Balanced
+9 dBu
Audio Output Impedance - Unbalanced
810 Ohms
Audio Output Impedance - Balanced
240 Ohms
Sensitivity
-100 dBm / 30 dB sinad
Image Rejection
>50 dB
Operating Voltage
15 VDC 200mA
Dimensions (LxWxH)
8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm
Weight
0.88lb / 400g
