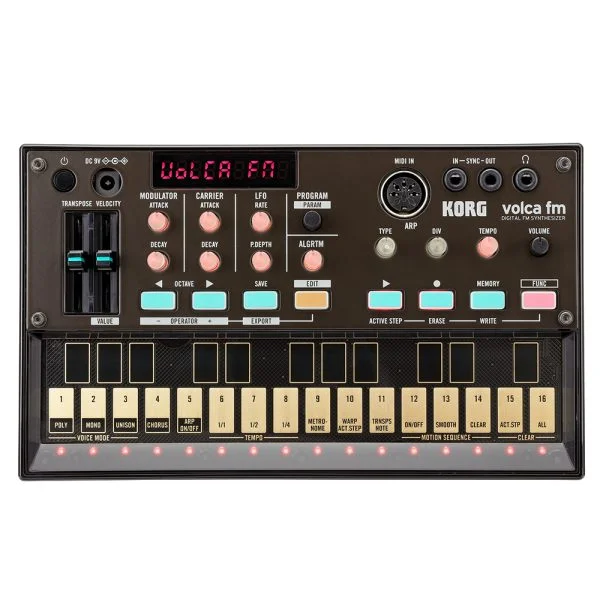

Korg Volca FM Synthesizer with Sequencer


FM Synthesizer Module with 6 Operators, 32 Algorithms, Built-in Chorus Effect, MIDI in, and Sync I/O

Purchase & earn 151 points!
Add to Wishlist Browse Wishlist

Iconic FM Synthesis in a Portable Package

The Korg Volca FM synthesizer module is like a portable version of the legendary DX7 FM synth — it can even accept original DX7 patch data! And the sound engine is exactly what you’d expect from that classic FM synth: six operators are ready to create clanging metallic tones, ripping leads, subsonic basses, and all manner of special effects.

The built-in 16-step sequencer with Motion Sequence allows you to record knob twists as well as note data for more sonic animation. Twist your patterns with Warp Active Step, Pattern Chain, or with the Arpeggiator, and use the lush onboard chorus effect to add shimmer to your sounds. Whether you perform live or produce electronic music in your studio, there’s a lot of sonic potential in the Korg Volca FM.

Easier to program than a vintage DX7

The classic FM synthesizer that electronic musicians know and love is the Yamaha DX7, and it’s just as famous for being difficult to program as it is for its iconic sound. The Korg Volca FM packs the same sound engine based around six operators, and its streamlined control set makes it much easier to program your own sounds from scratch. From percussion and effects to Reese bass and more, you can dial in classic FM synth sounds and save 32 of your favorites for instant recall. On top of that, Korg includes a Parameter List Guide you can reference as you learn your way around.

Tap into three decades of FM sound design

The original DX7 played a big role in shaping the sound of the ’80s Michael Jackson’s “Bad,” Kenny Loggins’ “Danger Zone,” and Tina Turner’s “What’s Love Got to Do with It,” among countless others. It says a lot that over 30 years later diehard DX7 fans are still creating new sounds and sonic textures with the original DX7. The Korg Volca FM allows you to share DX7 patches via SYS-EX/SYS files.

There are countless patches available online, so you’ll never run out of sounds to play or tweak. Getting patches out of your Volca FM is just a matter of writing down your settings (there’s no MIDI out). However, if you’re like many of the lifelong keyboard players here at City Music and still rock a DX7, then it’s totally worth the effort. There’s nothing like using your Volca FM to craft new patches on your lunch break and bringing them back to the studio in the evening.

Power options provide portable creativity

Like the rest of the Volca series, Korg’s Volca FM is designed to run for hours off six AA batteries. That makes it ideal for laying down grooves at the coffee shop or throwing down for impromptu tabletop sessions. There’s even a mini speaker onboard, so you can ditch the headphones and share the fun.

On that note, the included sync cable makes sharing the fun across modules easy by keeping everything locked to the same beat. Know you’re in for a longer session and don’t want to chew through batteries? No worries — just pick up a Volca Power Supply and you’re good to go as long as you like.

Korg Volca FM Synthesizer Module Features:

  • A super-portable FM synthesizer module based on the legendary DX7 archetecture
  • True DX7-style synth engine includes 6 operators and 32 algorithms for extensive sound design options
  • Supports original DX7 patch data, which you can upload via SYS-EX/SYS MIDI files (requires DX7 or MIDI interface)
  • Save 32 of your own sounds and 16 sequence patterns for instant recall
  • Loaded with 9 arpeggiator types (3 rise, 3 fall, and 3 random) that let you add energy and motion to your sounds
  • Poly, Mono, and Unison voice modes give allow you to dial in a wide range of different sound types
  • Built-in chorus effect provides a simple way to add shimmer and shine to your favorite patches
  • Tweak your patterns on the fly with Motion Sequence, Active Step, Warp Active Step, and Pattern Chain controls
  • Truly portable design includes battery power (6 x AA) and a built-in speaker — 9V Volca Power Supply (sold separately)

Multi touch keyboard

Synthesizer - Type

FM synthesis

Synthesizer - Maximum Polyphony

3 voices

Synthesizer - Structure

6 operators, 32 algorithms

Synthesizer - Number of Programs


Synthesizer - Main Edits

Modulator (Attack, Decay), Carrier (Attack, Decay), LFO (Rate, P.Depth), Algrtm
Available to edit full parameters for each operator in Edit Mode

Synthesizer - Controls

Transpose, Velocity, Octave, Arp (Type, Div)

Synthesizer - Arpeggiator Types

9 (each 3 patterns of "Rise", "Fall", and "Random")

Synthesizer - Voice Modes

Poly, Mono, Unison



Sequencer - Number of Parts


Sequencer - Number of Steps


Sequencer - Number of Recording Patterns


Sequencer - Controls

Motion Sequence, Active Step, Warp Active Step, Pattern Chain, Metronome

Connectors - Audio Output

Headphones (3.5mm stereo mini jack)

Connectors - Sync

Sync In (3.5mm monaural mini jack, Maximum input level: 20V)
Sync Out (3.5mm monaural mini jack, Output level: 5V)
When two units of volca fm, available to export the sound programs and sequence data from a volca fm to the other one

Connectors - MIDI

Available to convert and load SYS-EX/SYX file created on the Yamaha DX7

Power - Power Supply

AA alkaline battery x 6 or AA nickel-metal hydride battery x 6 Or AC adapter (DC 9V) (optional)

Power - Battery Life

Approximately 10 hours (using alkaline batteries)

Dimensions (W x D x H)

193 x 115 x 40 mm / 7.60” x 4.53” x 1.57”


360 g / 12.70 oz. (Excluding batteries)

Others - Included Items

AA alkaline battery x 6 (for verifying operation), Sync Cable, Edit Parameter List

Others - Accessories

AC adapter (DC 9V) KA-350

Manufacturer Part Number:
